ETB (replacement)

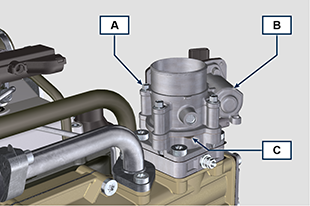

  1. Unscrew screws A and remove the ETB valve B with its gasket C.
 Important
  • Always replace the gasket C at each assembly.

Fig. 11.89

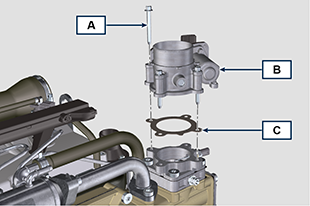

  1. Fix the ETB valve B and its gasket C by means of screws A (tightening torque 10 Nm)

Fig. 11.90
