Air filter check

NOTA: Components not necessarily supplied by KOHLER.

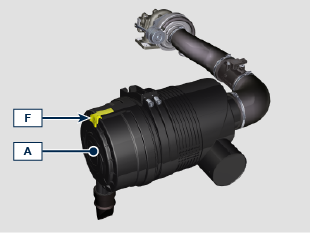

  1. Pull insert F to unlock cover A.
  2. Rotate counter clockwise and remove cover A.
  3. clean the inside components A and D with a damp cloth.
  4. Do not use compressed air, repeatedly tap the front side E on a flat surface.

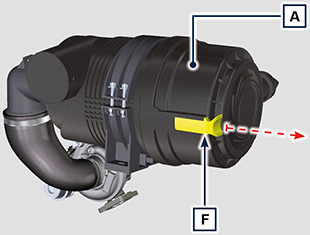

5.3

Important

  • When the cartridge G is dirty, do not clean it but replace cartridges B and G.

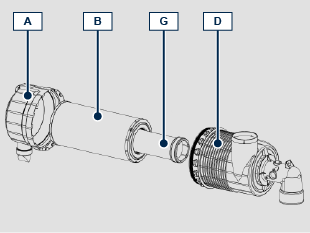

  1. Fit cartridges G and B.
  2. Fit cover A by performing the operations indicated in points 2 and 1 in the reverse order.

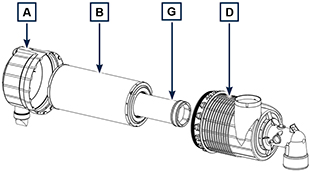

5.4

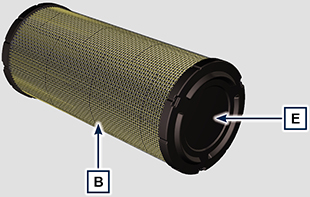

5.5
