Replacement of AdBlue®/DEF filter

Warning

  • Before proceeding with operation, read Par. 3.2.2
  • Do not lubricate gaskets A with oil or fuel.
  • Filter D includes gaskets A in the package.
  • Avoid any type of contamination during replacement.
  • Before starting any operations, make sure the key on the machine’s panel is OFF and the AdBlue®/DEF pump has executed the circuit emptying operation.

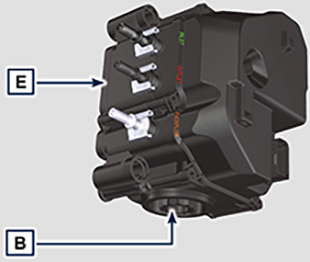

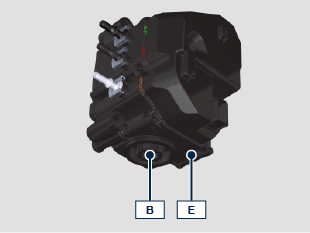

  1. Loosen cap B.



6.11

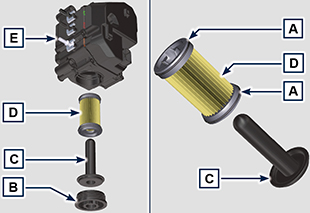

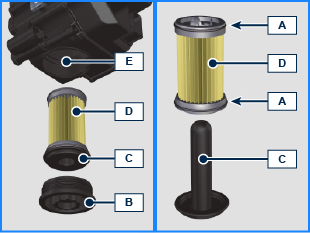

  1. Remove cap B and extract filter bracket C.
  2. Extract filter D.
  3. Use warm AdBlue®/DEF to clean the seat of filter D on pump E if impurities are detected.
  4. Lubricate the A gaskets with AdBlue®/DEF or distilled water.
  5. Place the filter bracket C together with filter D inside pump E.
  6. Tighten cap B (tightening torque of 20 Nm).

6.12
