Assembling the reversing gear

  1. Insert shaft A into the seat on coupling B.
  2. Place reversing gear C onto bell D.
  3. Fasten reversing gear C by means of capscrews E and E1 and washers F onto bell D (tightening torque of 50 Nm).

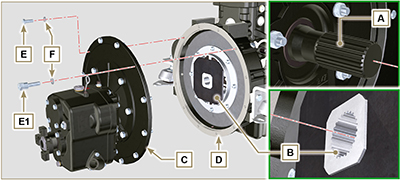

Fig. 9.50
