Assembly of the discharge line

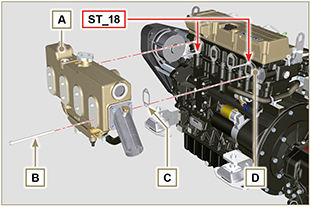

  1. Insert tool ST_18 into the holes of cylinder head D.
  2. Place manifold A onto cylinder head D, inserting gaskets C.
  3. Fasten manifold A onto cylinder head D by means of capscrews B (tightening torque of 30 Nm).

Fig 9.78
