Lubrication circuit assembly

9.10.1 Oil filter



  1. Perform the operations described in Par 6.10.2.

9.10.2 Oil pump



  1. Perform the operations described in Par 6.8.5.

9.10.3 Timing system crankcase



  1. Perform the operations described in Par 6.8.6.

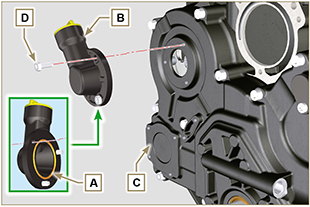

9.10.4 Crankcase oil filler flange Timing System



Important
  • Always replace the gasket A after each assembly.



  1. Position the gasket A in the seat on the flange B.
  2. Clamp the flange B on the crankcase C with the screws D (tightening torque of 10 Nm -ST_06).

Fig 9.65

9.10.5 Oil pressure relief valve



  1. Perform the operations described in Par 6.9.2.

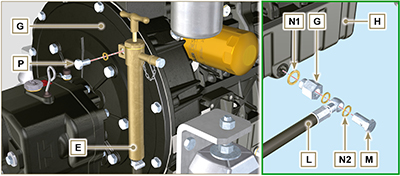

9.10.6 Oil extraction pump



  1. Fasten pump E on the fastening hollow stud of flange F by means of capscrew P (tightening torque of 25 Nm).
  2. Fasten union G onto oil sump H, inserting gasket N1 (Loctite 277 + tightening torque of 25 Nm).
  3. Fasten tube L by means of capscrew M with gaskets N2 (tightening torque of 25 Nm).

Fig. 9.66
