Assemble the intake line

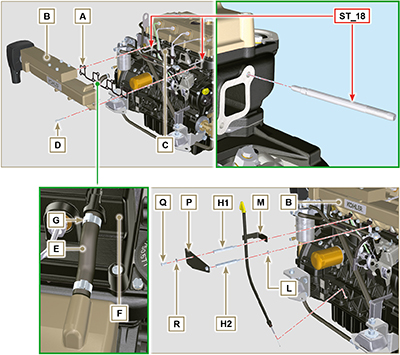

  1. Insert tool ST_18 into the holes, as shown in the figure.
  2. Place gasket A and manifold B onto cylinder head C.
  3. Fasten manifold A by means of capscrews D (tightening torque of 25 Nm).
  4. Insert tube E into rocker arm cover union F and fasten it with clamp G.
  5. Fasten oil dipstick tube M with hollow stud H1 onto manifold B, tighten hollow stud H2 with the washer
    L on manifold B (tightening torque of 10 Nm).
  6. Fasten plate P onto hollow studs H1 and H2 using capscrews Q with washers R (tightening torque of 10 Nm).

Fig 9.76 - Fig. 9.77
